How to Build a DIY Solar Generator Without Costly Sizing Mistakes

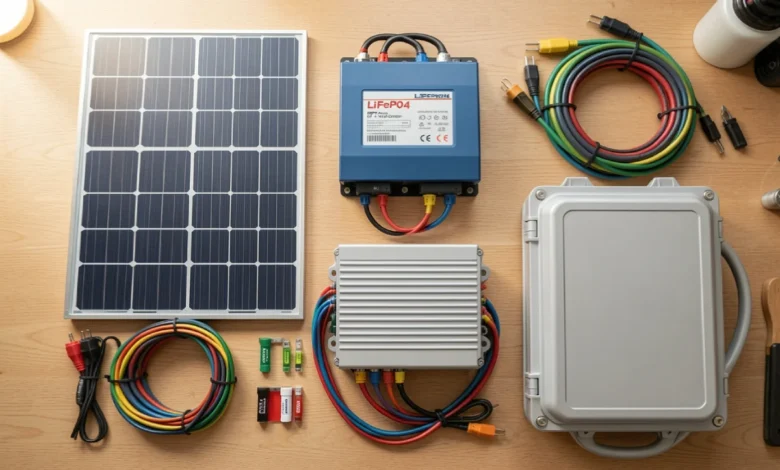

A DIY solar generator is a battery power station built from separate parts: a battery, solar charge controller, inverter, solar panels, wiring, fuses, and outlets. Building one can save money and make repairs easier, but only when every part is sized for the same job.

Start with the appliances you need to run. Do not begin with a large inverter and hope the battery can support it. That mistake appears often in DIY builds and can lead to sudden shutdowns, overheated cables, or damaged equipment.

This guide covers a small portable system for camping or emergency backup. It is not a guide to wiring a battery into a home’s breaker panel. Any connection to household circuits needs approved transfer equipment and a qualified electrician. Never feed power into a wall outlet.

List the Loads Before Buying a Battery

Write down each device, its running watts, and how many hours you expect to use it. Check the label or measure the device with a plug-in power meter. Online estimates are useful for planning, but the actual appliance is a better source.

Multiply watts by hours to find watt-hours:

Watts x hours used = watt-hours needed

A 60-watt laptop used for four hours needs about 240 watt-hours. Four 10-watt lights running for five hours need another 200 watt-hours. Together, those loads use 440 watt-hours before conversion losses.

Add roughly 15 to 25 percent for inverter and wiring losses. Cold weather, battery age, and standby power can also reduce useful runtime.

A Fridge Changes the Inverter Calculation

Motors and compressors can draw far more power when they start than while they run. A refrigerator may show a modest running figure yet briefly demand several times that amount at startup.

Choose an inverter by both its continuous rating and surge rating. The continuous rating must cover everything running at once. The surge rating must handle the largest startup event without tripping.

A pure sine wave inverter is the safer general choice for refrigerators, electronics, chargers, audio equipment, and motor-driven appliances. Modified sine wave models cost less, but some devices run hotter, make noise, or refuse to work with them.

Do not size the inverter far above the battery. A large 12-volt inverter can demand very high current. The battery management system, terminals, cables, fuse, and disconnect must all support that current.

Convert Battery Ratings Into Useful Runtime

Batteries are often sold in amp-hours, while appliances use watts. Convert a battery’s nominal rating to watt-hours with this formula:

Battery volts x amp-hours = nominal watt-hours

A 12.8-volt, 100Ah LiFePO4 battery stores about 1,280Wh on paper. The amount available at an AC outlet will be lower after the inverter, cabling, temperature, and safe discharge limits are considered.

LiFePO4 batteries are popular because they offer good cycle life and lower weight than comparable lead-acid storage. They still need suitable charger settings and low-temperature charging protection where freezing is possible.

Check two battery specifications: stored energy and maximum continuous discharge current. A battery may hold enough energy for several hours but still be unable to supply the inverter’s peak demand.

Match the Solar Array to the Charge Controller

The solar charge controller sits between the panels and battery. It regulates charging and must match the battery chemistry and voltage.

An MPPT controller usually makes better use of panel output than a basic PWM controller. It still has strict voltage and current limits.

Check the panel array’s open-circuit voltage, short-circuit current, and wiring arrangement against the controller manual. Panel voltage can rise in cold weather. Leave the manufacturer’s required safety margin rather than designing at the limit.

How Much Solar Is Enough?

Divide the energy you want to replace by the useful sun hours available at your location. Then allow for heat, clouds, panel angle, controller losses, and imperfect placement.

For example, replacing 800Wh in one day with four strong sun hours takes at least 200 watts in a perfect system. Real conditions are not perfect, so a larger array may be needed.

A panel’s advertised wattage is not a promise of constant outdoor output. Partial shade, heat, and a poor angle can reduce production.

For outage use, plan around the weaker solar season rather than a clear summer afternoon.

The Fuse Protects the Wire, Not the Appliance

A battery can release dangerous current into a short circuit. Every positive conductor leaving the battery needs suitable overcurrent protection based on the wire, expected load, battery capability, and equipment instructions.

Place the main battery fuse close to the positive terminal. Use properly rated DC fuses, breakers, switches, bus bars, and connectors. AC-rated hardware is not automatically safe for interrupting a DC fault.

Cable size depends on current, length, temperature, and acceptable voltage drop. Keep battery cables short. Use correctly crimped lugs, cover exposed terminals, and add strain relief.

There is no universal fuse or wire size for every 500-watt or 1,000-watt build. Follow the inverter, battery, and controller manuals, then have the final diagram reviewed by someone qualified in low-voltage DC systems.

A Practical Parts List That Leaves Out the Guesswork

• A battery with a BMS rated for the planned continuous and surge current
• A pure sine wave inverter sized for the measured loads
• An MPPT or PWM charge controller matched to the array and battery
• Solar panels with compatible voltage and current limits
• DC-rated main fuse, branch protection, and a battery disconnect
• Correctly sized cable, lugs, bus bars, connectors, and terminal covers
• A battery monitor with a shunt for useful state-of-charge readings
• AC outlets, USB outlets, or 12-volt sockets with suitable protection
• A strong enclosure with protected terminals and required ventilation
• An approved AC battery charger for backup charging, if needed

Draw the wiring diagram before buying parts. Mark cable sizes, fuses, disconnects, polarity, and bus connections.

Build in a Safe Order

Mount the hardware before making live connections. Allow the inverter’s required ventilation space and secure the battery inside the enclosure.

Crimp and label cables, then check every run with power disconnected. Confirm polarity with a meter before attaching equipment.

Many charge controllers require the battery connection before the solar input so the controller can detect system voltage. Follow the exact connection and shutdown order in your controller manual rather than relying on a general rule.

Leave the main disconnect open while checking for loose strands, exposed copper, reversed polarity, and unprotected terminals. Grounding and neutral bonding differ by inverter and use. Follow its manual or ask a qualified electrician.

Test Small Before Plugging In the Main Load

Power the DC system first. Confirm bus voltage, battery type, and charging limits.

Turn on the inverter with no appliance connected. Then test a small known load. Watch voltage, current, cable temperature, inverter alarms, and battery monitor readings.

Move to the intended load only after that test passes. Shut down if a connection heats up, voltage falls sharply, or the BMS trips.

What DIY Builders Keep Getting Wrong

Recent Reddit and solar-forum discussions repeat the same problems. Builders often choose an inverter by watts but overlook the battery’s discharge limit. Others reduce cable size without reducing the fuse, or place a fuse far from the battery.

Panel voltage is another common trap. The array may appear safe from its watt rating while its cold-weather open-circuit voltage exceeds the controller limit.

Stacking several lugs on one terminal can create a loose connection. Bus bars provide cleaner distribution. Every charge and load path must pass through the shunt for an accurate battery reading.

DIY or a Ready-Made Power Station?

A DIY build suits buyers who want replaceable parts, a specific battery size, or room for future changes.

A ready-made station is often better when portability, warranty support, and quick setup matter most.

Compare total costs, including protection, cable, tools, charger, monitor, and your time. DIY is not always cheaper.

Build for One Real Outage, Not Every Possible Appliance

The strongest first build has a clear job. It might keep a refrigerator cold, charge phones, run lights, and power a router. Size every part around that plan and test the complete system before an emergency.

Avoid connecting a homemade unit to household wiring, life-support equipment, or loads that exceed its tested limits. For those jobs, use listed equipment and professional installation.

A reliable DIY solar generator is not defined by the biggest inverter or battery. It is defined by balanced parts, correct protection, clean connections, and realistic expectations about sunlight and runtime.
