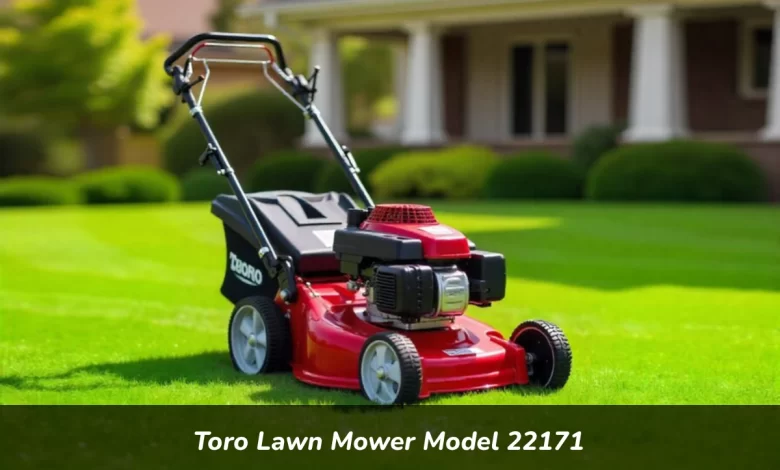

Toro Lawn Mower Model 22171: Complete Guide to Parts and Maintenance
The Toro 22171 is a 21-inch commercial-grade Recycler walk-behind mower manufactured from 1999 to 2003. It features a Kawasaki engine (5.5-6 hp), cast deck construction, rear-wheel drive with gear transmission, and a 3-in-1 cutting system. This model requires regular maintenance, including oil changes, air filter replacement, and blade sharpening.
Finding reliable information about older lawn mower models can be frustrating. You need specific parts, clear maintenance steps, and answers that actually help. The Toro 22171 was a workhorse in its day, and many units still run strong today with proper care.
This guide covers everything you need to know about maintaining your Toro Model 22171, from identifying the right parts to performing essential service tasks.
What Makes the Toro Lawn Mower Model 22171 Unique
The Toro 22171 represents the commercial 3-in-1 Recycler series that Toro produced between 1999 and 2003. This model earned respect among landscaping professionals and homeowners who needed a reliable machine for demanding work.
The 22171 came with a 21-inch cutting swath and a durable cast aluminum deck. Unlike lighter residential models, this mower featured professional-grade components designed for daily use. The Kawasaki engine provided reliable power (5.5 to 6 horsepower depending on the serial number), and the rear-wheel drive system handled slopes and thick grass with ease.
Your specific model year depends on the serial number. Units with serial numbers 9900001 to 9999999 were manufactured in 1999, while later versions ran through 2003. This information matters when ordering replacement parts, as some components have changed between production years.
Key Specifications and Features
Understanding your mower’s specs helps you maintain it properly and set realistic expectations for performance.
The engine runs at 3000 RPM (plus or minus 150 RPM) and requires 26 ounces of oil with the filter. You should use 30W or 10W-30 oil rated API SH or higher. The spark plug is a Champion RC12YC with a gap of .030 inches (.76mm).
The transmission uses gear drive technology with rear-wheel traction. Ground speed varies depending on the gear selected: 1.8, 2.7, or 3.8 miles per hour. The gearbox needs regular lubrication with #2 lithium grease to prevent wear and ensure smooth operation.
Height adjustment ranges from 3/4 inch to 3-1/4 inches, giving you flexibility for different grass types and seasons. The cutting system handles three functions: mulching, bagging, and side discharge.
Finding the Right Parts for Your Toro 22171
Parts availability remains good for the 22171, even though production stopped over 20 years ago. Major suppliers like PartSelect, PartsTree, and eReplacementParts stock OEM components for this model.
You need your complete model and serial number when ordering parts. The model number (22171) appears on a sticker or metal plate on the mower deck. The serial number determines which parts fit your specific unit, as Toro made running changes during production.
Common replacement parts include:
- Air filter element (part number 100-2692)
- Mower blade, 21-inch (part number 14-9419)
- Blade stiffener (part number 92-1599-03)
- Nylon lock nuts in various sizes (3296-6, 3296-29, 3296-42)
- Washers and hardware for wheel assemblies
- Grass bag assembly (part number 99-2535)
- Gear case assembly (part number 74-1861)
The blade assembly requires special attention. Always replace worn blades rather than trying to repair damaged or cracked ones. A bent or compromised blade creates dangerous vibration and delivers poor cut quality.
Essential Maintenance Tasks
Regular maintenance keeps your 22171 running reliably and extends its service life. The lawn mower market continues to grow, with millions of Americans maintaining their equipment properly to avoid costly replacements.
Air Filter Service
Check the air filter before each use. Remove the air filter cover by unclipping it, then inspect the foam element. If debris covers the filter surface, tap it gently on a hard surface to dislodge dirt. Replace the filter if it appears excessively dirty or damaged. A clogged air filter reduces engine power and increases fuel consumption.
Oil Changes
Change the oil at least once per season or every 50 hours of operation. Warm the engine for a few minutes before draining to help old oil flow freely. Tip the mower onto its side with the air filter facing up to prevent oil from entering the combustion chamber.
Remove the dipstick and drain the old oil into an approved container. Refill with 26 ounces of fresh 30W or 10W-30 oil. Check the level with the dipstick and adjust as needed.
Blade Maintenance
Sharp blades cut cleanly and promote healthy grass growth. Dull blades tear grass, creating brown tips that make your lawn look damaged. Inspect the blade whenever you run out of gasoline or notice poor cut quality.
Remove the blade by first disconnecting the spark plug wire. Tip the mower with the air filter up. Use a socket wrench to loosen the blade bolt (wear gloves for safety). Take the blade to a professional for sharpening and balancing, or replace it with a new OEM blade.
Reinstall the blade with the sail (curved portion) facing the deck. Torque the bolt to manufacturer specifications to prevent loosening during operation.
Gear Case Lubrication
The gear case needs #2 lithium grease to protect internal components from wear. Check the operator’s manual for specific lubrication points and intervals. Proper lubrication prevents expensive transmission repairs and ensures smooth self-propel operation.
Troubleshooting Common Issues
Even well-maintained mowers develop problems. Here are solutions for the most common 22171 issues.
Engine Won’t Start
First, check the obvious: Is there fresh fuel in the tank? Old gasoline (over 30 days) causes starting problems. Drain stale fuel and refill with fresh gas.
Inspect the spark plug. Remove it and check for carbon buildup or damage. Replace if necessary and set the gap to .030 inches. Reconnect the spark plug wire firmly.
If the engine still won’t start, the air filter might be clogged, or the carburetor needs cleaning. These repairs require more technical skill, so consider taking the mower to a qualified service dealer.
Poor Self-Propel Performance
Weak or inconsistent self-propel usually indicates cable adjustment issues. The drive cable stretches over time, reducing tension on the transmission engagement mechanism.
Locate the cable adjustment nut near the handle. Loosen the locknut and turn the adjustment nut to increase tension. Test the self-propel and fine-tune as needed. If adjustment doesn’t help, the drive belt or internal transmission components may need replacement.
Uneven Cut Quality
Check the blade first. A dull or damaged blade never delivers good results. Also, verify that all four wheels sit at the same height setting. Even if one wheel is adjusted differently creates an uneven cut.
Clean under the deck regularly. Grass buildup changes airflow patterns and causes uneven cutting. Tip the mower (air filter up) and scrape away accumulated clippings and debris.
Where to Buy Parts and Get Service
Several online retailers specialize in Toro parts. PartSelect and PartsTree offer exploded diagrams that show how components fit together, making it easier to identify what you need. eReplacementParts provides symptom-based searching to help troubleshoot problems.
For hands-on help, locate an authorized Toro service dealer through the company’s website. These dealers stock common parts and have technicians trained on Toro equipment. Many offer seasonal tune-up packages that include oil changes, blade sharpening, and general inspection.
You can also find operators’ manuals and parts catalogs on ManualsLib and the official Toro support site. These resources provide detailed maintenance procedures and part number references.
FAQs
What year is my Toro 22171 mower?
Check the serial number on your model identification plate. Serial numbers 9900001-9999999 indicate 1999 manufacture. Numbers 200000001-200999999 are from 2000, 210000001-210999999 from 2001, 220000001-220999999 from 2002, and 230000001-230999999 from 2003.
Can I still get parts for a 20+ year old Toro mower?
Yes. Major parts suppliers continue stocking OEM components for the 22171. Common wear items like blades, belts, filters, and cables remain readily available. Some specialty parts may require ordering through a Toro dealer.
How often should I change the oil in my Toro 22171?
Change oil at least once per mowing season or every 50 hours of operation, whichever comes first. If you use your mower commercially or in dusty conditions, change oil more frequently.
What type of oil does the Toro 22171 use?
Use SAE 30W or 10W-30 motor oil rated API SH or higher. The engine holds 26 ounces with the filter. Avoid mixing different oil types or using automotive oils with additives not designed for small engines.
Is the Toro 22171 a good mower for residential use?
Absolutely. While designed as a commercial mower, the 22171 performs excellently for homeowners with larger properties or challenging terrain. The commercial-grade construction means it handles abuse better than entry-level residential models. However, it’s heavier and may require more physical effort to push than modern lightweight mowers.
